Product Details
Commercial Grade Truck Equipment
Products Start
>
Service Bodies
>
Standard Bodies
>
L Series
L57DW94 Product Specs
Length:
0 "
Overall Length:
0 "
Height:
0 "
Overall Height:
0 "
Mount Height:
0 "
Overall Height Folded:
0 "
Depth:
0 "
Overall Depth:
0 "
Weight:
0 lbs.
Width:
0 "
Overall Width:
0 "
Number of Doors:
0
Top Tray Height:
0 "
Standard Tray:
0
Application:
0
Wheels:
Dual
Hoist:
0
Rotation:
0
Rotation Break:
0
Boom Elevation:
0
Boom Exention:
0
Retracted Length:
0
Extended Length:
0
Load Radius:
0
Lift Capacity:
0
Elevation Travel:
0
Material:
Steel
Number of Lids:
0

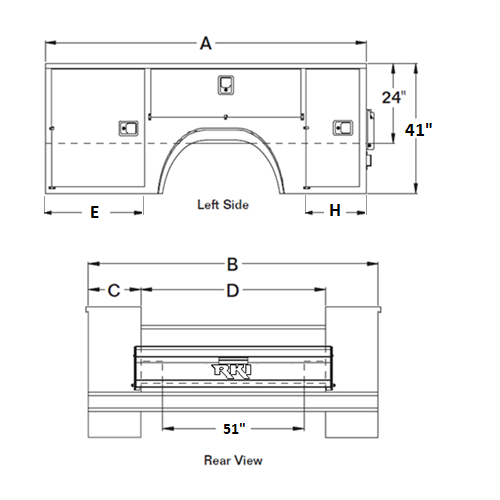

A:
96 "
B:
94 "
C:
20 "
D:
54 "
E:
32 "
F:
0 "
G:
0 "
H:
20 "
I:
0 "
Approximate Weight:
1290 lbs.
Aproximate Shipping Weight:
0
Ratio:
0
Gear Cut:
0
Drum:
0
Shaft:
0
Assembly:
0
L57DW94
Product Images
Click for larger image
No images are available at this time.
L57DW94 Product Details
14 gauge galvanneal steel construction.
Double panel doors with 14 gauge galvanneal outer panel and 18 gauge galvanneal inner panel.
12 gauge tread plate floor.
3/16" A50 high strength steel formed crossmembers at front and rear of body.
10 gauge high strength steel formed intermediate crossmembers.
3 full length 14 gauge formed “hat” channel longitudinals for full length floor support.
Stainless steel integral rod door hinge pins.
Stainless steel pillow blocks with self-lubricating bushings.
Stainless steel paddle latches.
Body fully undercoated.
Lifetime warranty.
