Products Start > Service Bodies > Crane Bodies (with RFC option shown) > C Series

C108DW94 Product Specs

Length: 0 "
Overall Length: 0 "
Height: 0 "
Overall Height: 0 "
Mount Height: 0 "
Overall Height Folded: 0 "
Depth: 0 "
Overall Depth: 0 "
Weight: 0 lbs.
Width: 0 "
Overall Width: 0 "
Number of Doors: 0
Top Tray Height: 0 "
Standard Tray: 0
Application: 0
Wheels:
Hoist: 0
Rotation: 0
Rotation Break: 0
Boom Elevation: 0
Boom Exention: 0
Retracted Length: 0
Extended Length: 0
Load Radius: 0
Lift Capacity: 0
Elevation Travel: 0
Material: Steel
Number of Lids: 0

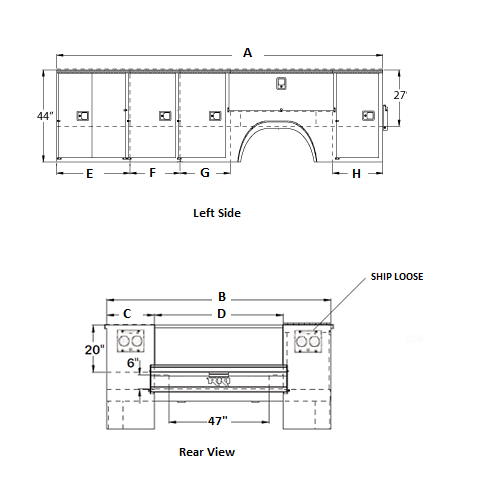

A: 156 "
B: 94 "
C: 20 "
D: 54 "
E: 34 "
F: 24 "
G: 24 "
H: 24 "
I: 0 "
Approximate Weight: 3719 lbs.
Aproximate Shipping Weight: 0
Ratio: 0
Gear Cut: 0
Drum: 0
Shaft: 0
Assembly: 0

C108DW94 Product Images

Click for larger image

No images are available at this time.

C108DW94 Product Details

Standard Features

  • Double panel doors with 14 gauge galvanneal outer panel and 18 gauge galvanneal inner panel.
  • Stainless steel integral rod door hinge pins.
  • Stainless steel pillow blocks with self-lubricating bushings.
  • Stainless steel rotary latches.
  • Body fully undercoated.
  • 12 gauge compartment front, rear and bottom panels.
  • 1/8" tread plate floor with reinforced understructure and flatbar longitudinal runners.
  • 1/8" treadplate compartment tops, load area walls and bulkhead.
  • 1/8" treadplate tailgate overlay.
  • Front and rear crossmembers of heavy wall rectangular tubing, and supports for tying in outriggers.
  • 3/16" high strength steel formed intermediate crossmembers.
  • 3 full length 12 gauge formed “hat” channel longitudinals for full length floor support.
  • Crane reinforcement for up to 8,000 lb. crane (50,000 ft. lb.).
  • LITEMOUNT boxes (pair) included with the body (shipped loose)
  • Lifetime warranty.

Optional Features



Lifetime Warranty
